🔐 Authelia Authentication

Seamlessly integrate Authelia as your single sign-on (SSO) provider for Booklore. Simplify user authentication, enhance security, and provide a streamlined login experience across your applications.

Username Matching Required

The username in Authelia must exactly match the username in Booklore for authentication to work properly. Case sensitivity matters. If a user doesn't exist in Booklore with the matching username, authentication will fail.

🌟 What You'll Achieve​

With Authelia integration, you can:

  • Enable single sign-on (SSO) for seamless access to Booklore without separate login credentials
  • Centralize user management across multiple applications from one unified interface
  • Enhance security with OAuth2/OpenID Connect protocols and modern authentication standards
  • Simplify login experience for your users with automatic session management
  • Control access through OIDC client configuration and user permissions
  • Streamline deployment with Authelia's lightweight and easy-to-configure architecture

✨ How Authelia Integration Works​

🔄 The Authentication Flow​

Understanding the authentication flow helps troubleshoot issues and explains what happens behind the scenes:

  1. 🎫 User Initiates Login
    User attempts to access Booklore and is redirected to Authelia's secure login portal. The original destination URL is preserved for automatic redirect after authentication.

  2. 🔑 Authelia Authenticates
    User enters credentials in Authelia's login page. Authelia validates the credentials against its user directory and verifies the user's identity.

  3. ✅ Token Exchange
    Authelia validates credentials and issues OAuth2 tokens (access token, ID token). These tokens contain user information and are cryptographically signed for security.

  4. 🚪 Access Granted
    Booklore receives and validates the tokens, extracts user information, matches it with an existing Booklore user account, and grants access to the authenticated user.

🚀 Setting Up Authelia​

Step 1: Create OIDC Client in Authelia​

The essential parts of the Authelia config are highlighted below, and should be adapted to your specific setup.

booklore.dev will need changing to your actual domain name.

It's also best practice to change the client_id parameter to a randomly generated string, the following restrictions apply:

Valid Client ID’s have the following characteristics:

identity_providers:
  oidc:

    lifespans:
      access_token: 1h
      authorize_code: 1m
      id_token: 1h
      refresh_token: 90m
    enable_client_debug_messages: true
    enforce_pkce: public_clients_only
    cors:
      endpoints:
        - authorization
        - pushed-authorization-request
        - token
        - revocation
        - introspection
        - userinfo
      allowed_origins_from_client_redirect_uris: true


    claims_policies:
      legacy:
        id_token: ['email', 'email_verified', 'preferred_username', 'name']

    clients:
      - client_id: booklore
        client_name: Booklore
        public: true
        authorization_policy: two_factor
        claims_policy: legacy
        consent_mode: implicit
        require_pkce: true
        pkce_challenge_method: S256
        scopes:
          - offline_access
          - openid
          - profile
          - email
        redirect_uris:
          - https://booklore.booklore.dev/oauth2-callback
          - https://booklore.booklore.dev/*
        response_types:
          - code
        grant_types:
          - authorization_code
          - refresh_token

⚙️ Configuring Booklore​

Step 2: Connect Booklore to Authelia​

Now configure Booklore to use Authelia as the authentication provider. This is the final configuration step:

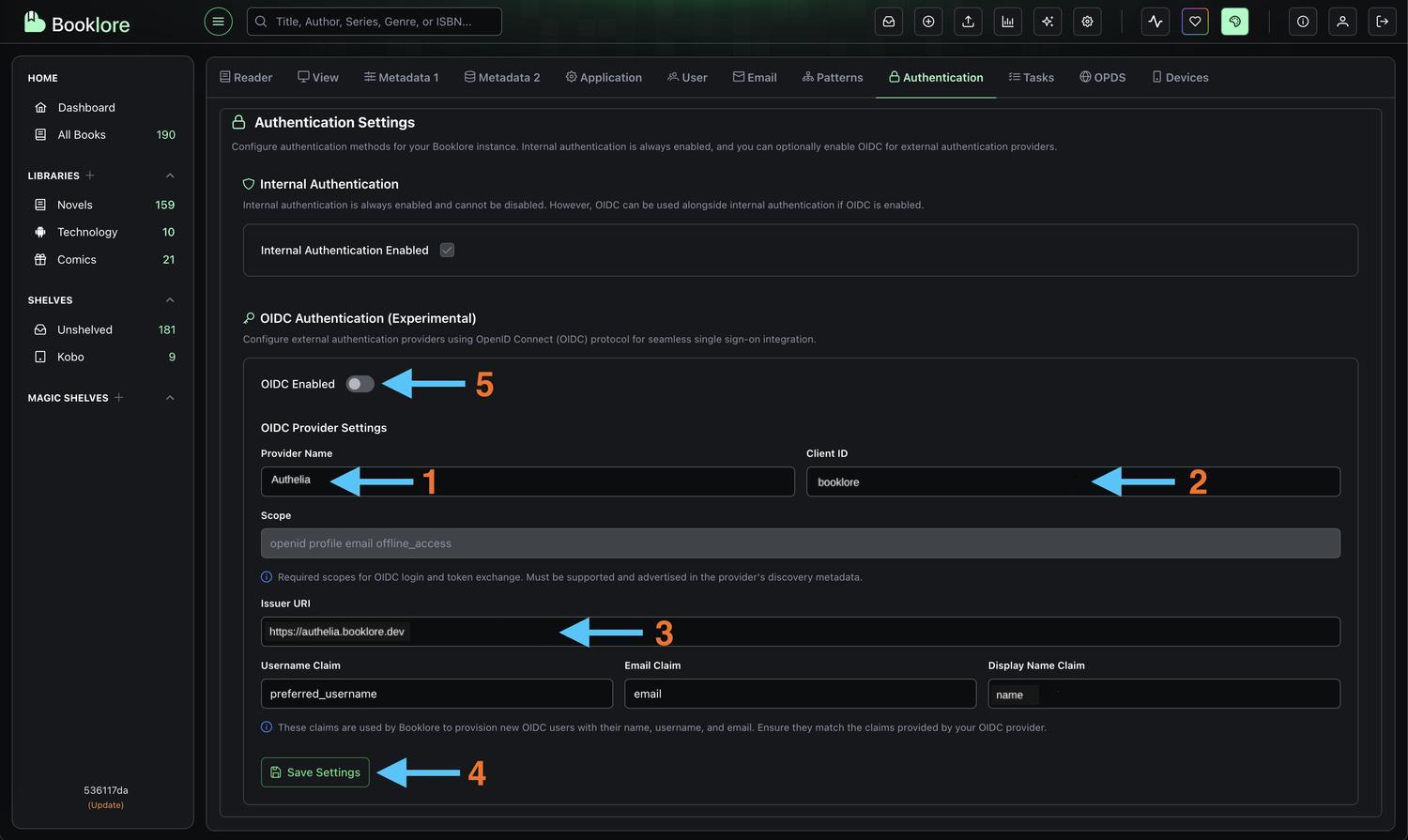

Booklore OIDC Settings

  1. Open Booklore Settings
    Navigate to Settings → Authentication in your Booklore admin interface. You'll need administrator privileges to access this section.

  2. Configure OIDC Provider Enter the credentials you copied from Authelia:

    • Provider Name: Authelia (or your preferred display name)
      • This name appears on the login button, so make it recognizable to users
    • Client ID: Paste the Client ID from Authelia (booklore)
      • Make sure there are no extra spaces before or after
    • Issuer URI: Paste the OpenID Configuration Issuer URL from Authelia without a trailing slash
      • Example: https://auth.booklore.dev
    • Username Claim: preferred_username
    • Email Claim: email
    • Display Name Claim: name
    • Click Save to store the configuration

  3. Enable OIDC Authentication
    Toggle "OIDC Enabled" to ON to activate Authelia authentication

    • When enabled, users will see a "Login with Authelia" button on the Booklore login page
    • The standard username/password login will still be available unless specifically disabled
Configuration Complete!

Booklore is now configured to use Authelia for authentication. The next step is testing the integration to ensure everything works correctly.

🧪 Testing the Integration​

Step 4: Test Login with Authelia​

Verify that the integration works correctly before rolling it out to users. Testing ensures a smooth experience:

Open an incognito/private browser window

  • Navigate to your Booklore instance
  • Click "Login with Authelia" (or your configured provider name)
  • You'll be redirected to Authelia for authentication
  • After logging in, you should be redirected back to Booklore

Booklore Opens

Integration Successful!

Your Authelia integration is working correctly. You can now roll it out to your users.

🔄 Managing Authentication​

Disabling Authelia Authentication​

If you need to temporarily disable or switch authentication methods (for maintenance or troubleshooting):

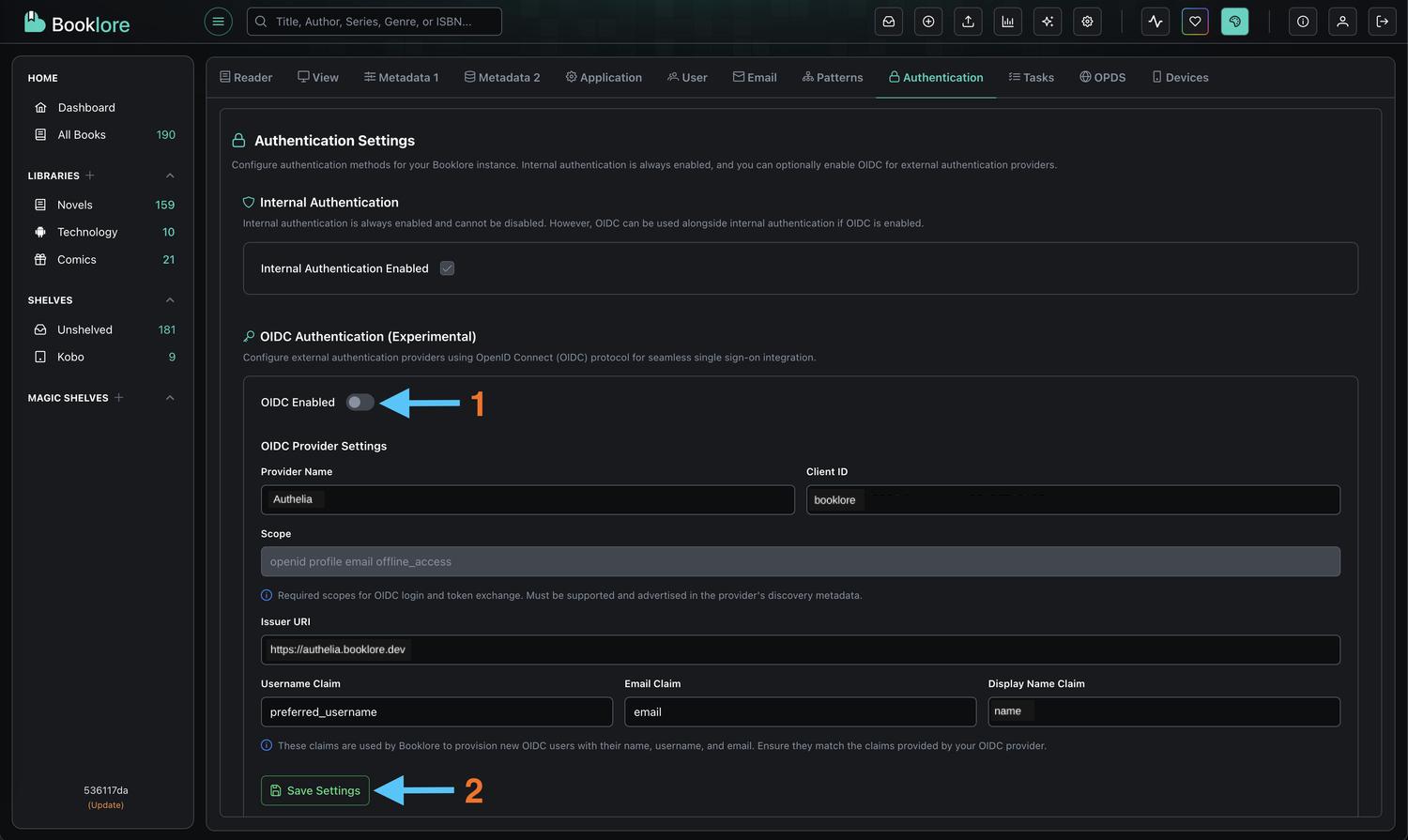

Disable OIDC

  1. Navigate to Authentication Settings
    Go to Booklore → Settings → Authentication

  2. Disable OIDC
    Toggle "OIDC Enabled" to OFF

    • This immediately disables Authelia authentication
    • Active sessions remain valid until they expire
    • New login attempts will use standard authentication

  3. Log Out
    Click Logout to end your current session and verify the change

  4. Standard Login Returns
    You'll be redirected to the standard Booklore login page with username/password fields

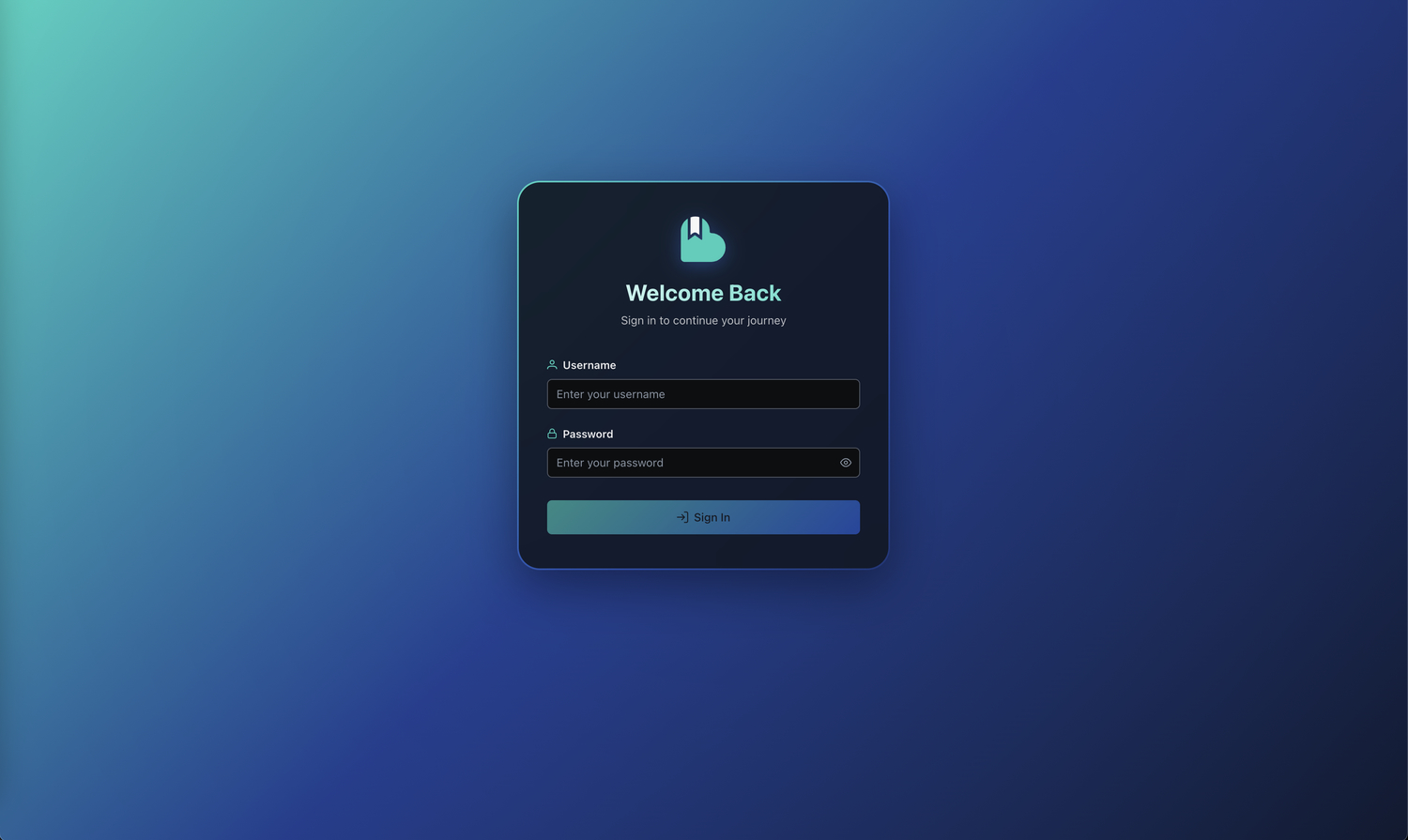

Booklore Login

Configuration Persistence

Disabling OIDC doesn't delete your Authelia configuration. All settings (Client ID, Issuer URL) are preserved. You can re-enable it anytime by toggling the switch back on. Users who were authenticated via Authelia can still log in with standard credentials if they have them configured.

🛠️ Troubleshooting​

Common Issues and Solutions​

Authentication Fails:

  • ✓ Verify usernames match exactly between Authelia and Booklore (case-sensitive)
  • ✓ Check callback URLs DO NOT include trailing slashes
  • ✓ Ensure user exists in both Authelia and Booklore
  • ✓ Verify Client ID is correctly copied (no extra spaces)
  • ✓ Check browser console for errors (F12)

Redirect Errors:

  • ✓ Verify callback URL: /oauth2/callback (without trailing slash)
  • ✓ Confirm domain matches exactly in both systems
  • ✓ Ensure HTTPS is used in production
  • ✓ Validate wildcard pattern: https://your-domain/*

User Not Found:

  • ✓ Create matching username in Booklore (case-sensitive)
  • ✓ Verify user account is active in Authelia
  • ✓ Check that email addresses match between systems

"Invalid Client" Error:

  • ✓ Check Client ID is copied correctly (no extra spaces)
  • ✓ Ensure Issuer URL DOES NOT have a trailing slash

Connection Refused:

  • ✓ Verify Authelia service is running and accessible
  • ✓ Check network connectivity between Booklore and Authelia
  • ✓ Ensure firewall rules allow communication
  • ✓ Validate DNS resolution for both domains

SSL/Certificate Errors:

  • ✓ Ensure valid SSL certificates on both systems
  • ✓ Verify Issuer URL uses HTTPS in production
  • ✓ Check certificate chains are properly configured
  • ✓ Validate certificate expiration dates

Viewing Logs​

Authelia: Check application logs for OAuth-related events and errors
Booklore: Review authentication logs in the application logs directory

🎯 Best Practices​

Security Recommendations​

  • 🔒 Use HTTPS - Always use HTTPS in production with valid SSL certificates
  • 🔐 Secure Credentials - Store Client IDs securely and never expose them in public repositories
  • 🛡️ Keep Updated - Regularly update both Authelia and Booklore to patch security vulnerabilities
  • 📊 Monitor Activity - Track login attempts and set up alerts for unusual patterns
  • 🔑 Rotate Credentials - Periodically regenerate Client IDs, especially after personnel changes
  • 🚪 Restrict Access - Configure callback URLs as specifically as possible
  • 👥 Review Users - Regularly audit user accounts and remove inactive users

Optimization Tips​

  • 📝 Use descriptive names - Name OIDC clients clearly (e.g., "Booklore Production")
  • 🌐 Use reverse proxy - Add rate limiting and IP whitelisting for additional security
  • 🔄 Test in staging - Validate changes in a staging environment before production
  • ⚡ Optimize tokens - Configure appropriate token expiration times
  • 📋 Document setup - Keep detailed records of your configuration for troubleshooting

User Experience​

  • 🎨 Customize branding - Configure Authelia with your organization's branding
  • 📚 Document the process - Create user guides with screenshots and support contact info
  • 🆘 Provide support - Ensure users know how to get help with authentication issues
  • 🔄 Test regularly - Periodically verify the authentication flow works as expected

📚 Additional Resources​

  • Authelia Documentation: Official documentation for Authelia configuration
  • OAuth 2.0 Specification: Understanding the protocol behind SSO
  • OpenID Connect Core: Detailed information about OIDC flows
  • Security Best Practices: Regular security audits and penetration testing

Authelia is an open-source authentication and authorization server and portal fulfilling the identity and access management (IAM) role of information security in providing multi-factor authentication and single sign-on (SSO) for your applications via a web portal. Authelia is an OpenID Connect 1.0 Provider which is OpenID Certified™ allowing comprehensive integrations, and acts as a companion for common reverse proxies.
